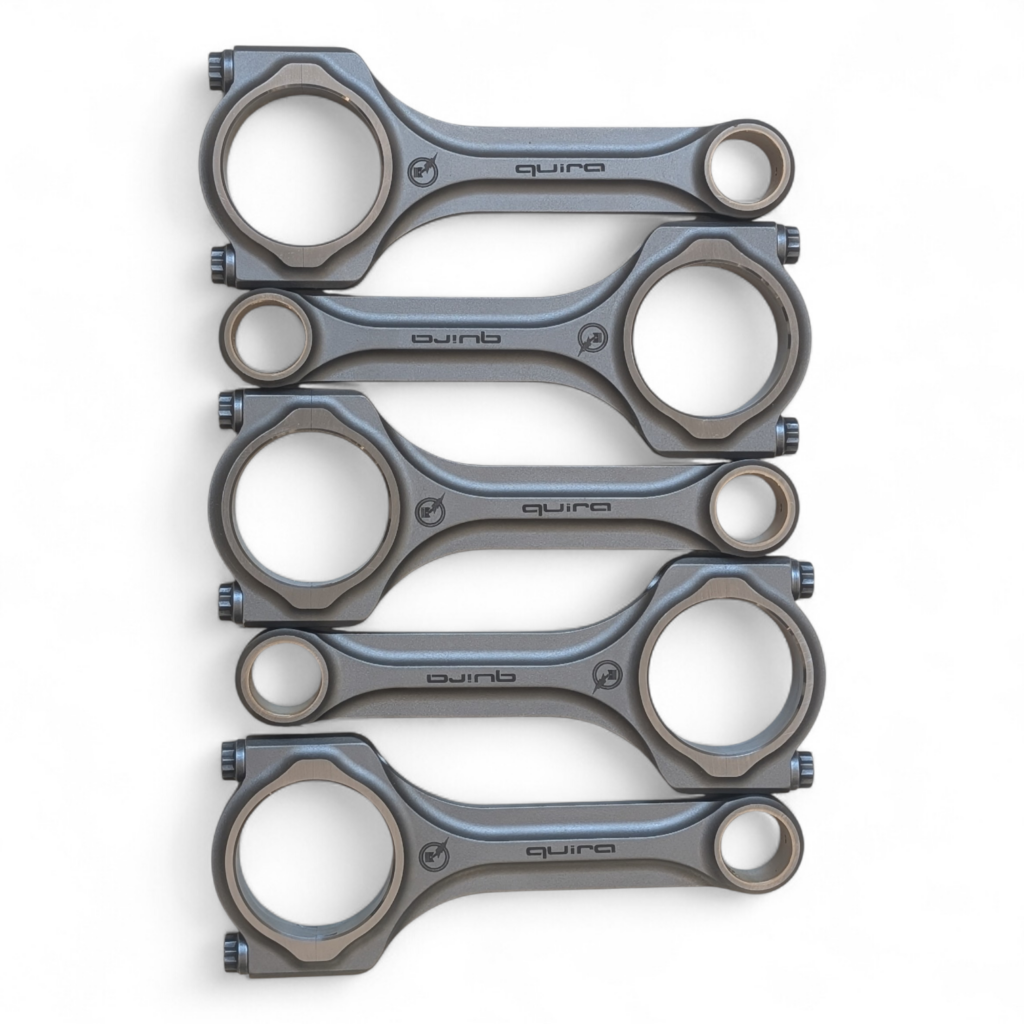

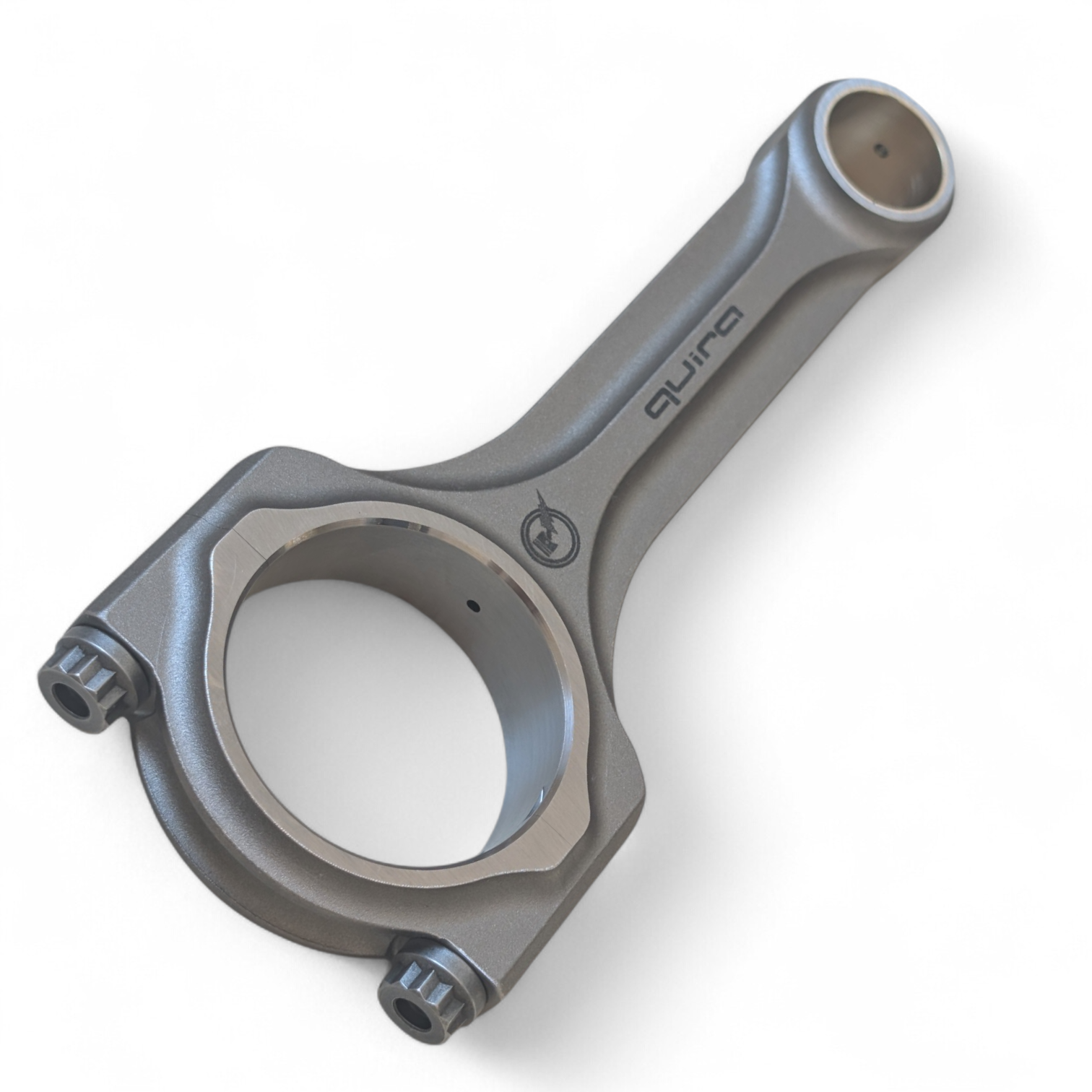

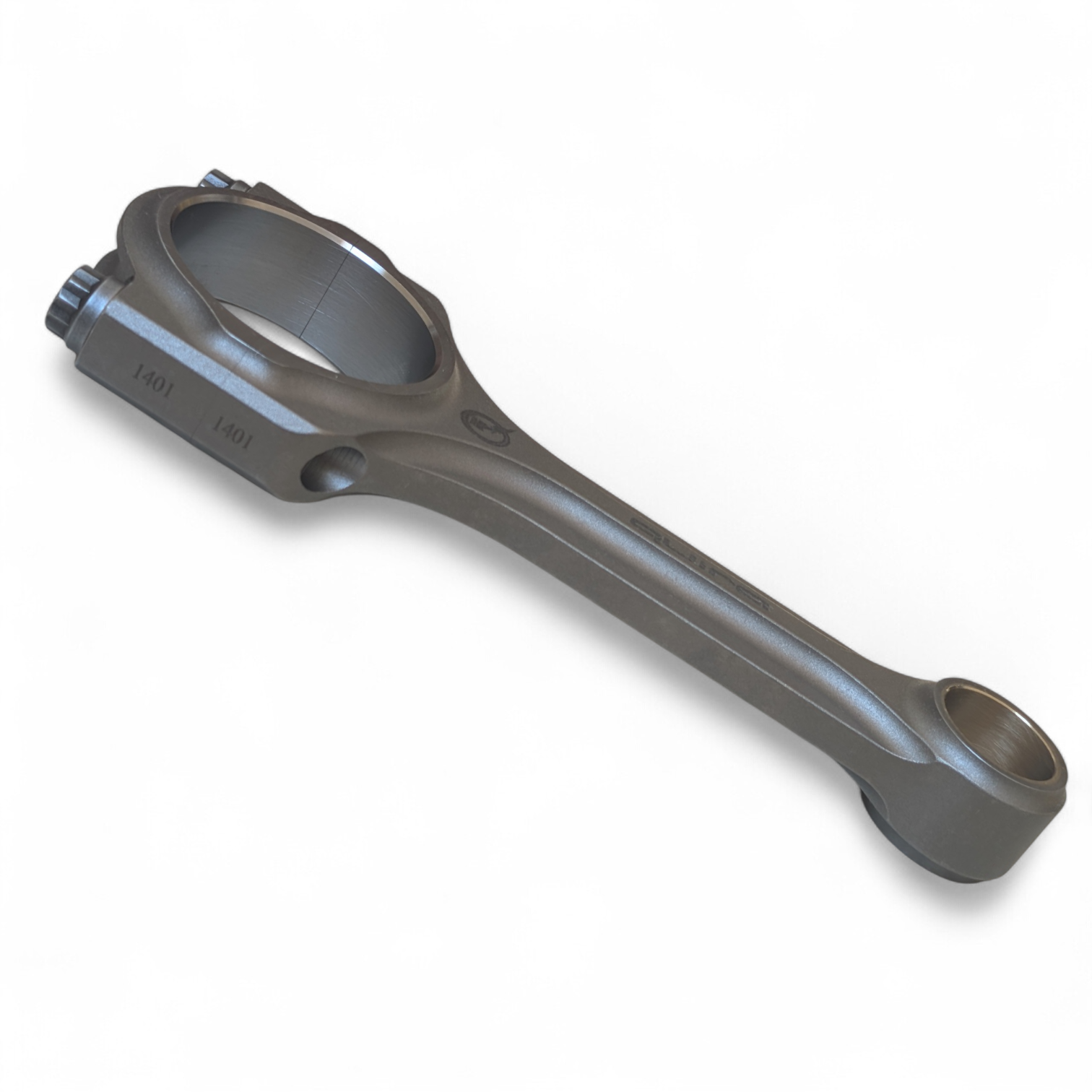

RODS SPECS
QUIRA Engine Components was established after more than two decades of designing and supplying internal engine components for multiple performance brands. The decision to operate under our own name represents a consolidation of accumulated engineering experience into a single, controlled standard.
Our approach is deliberate. Components are engineered for sustained cylinder pressure, elevated thermal load, and repeatable high-output operation. Every design decision is evaluated against long-term mechanical consequence.
In a modern turbocharged engine, performance is defined by material behavior, dimensional stability, load distribution, and thermal control rather than peak horsepower figures alone.
All engineering specifications, material standards, and quality control parameters are defined by QUIRA in Spain. Production is executed through established forging and machining facilities operating under those controlled requirements.
Our sourcing standards prioritize structural integrity and metallurgical consistency over cost-driven procurement.

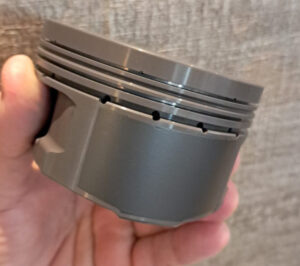

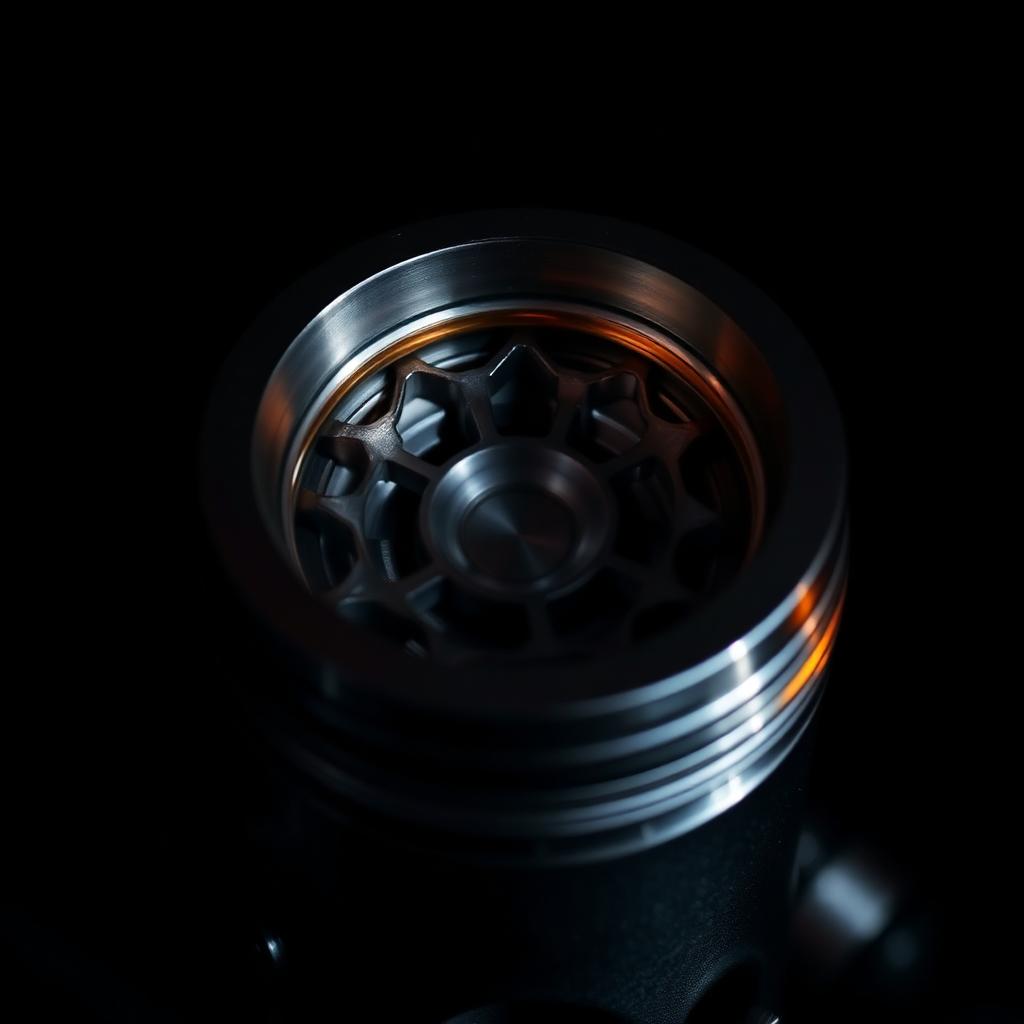

QUIRA pistons are forged from industry-recognized 4032-T6 and 2618-T61 aluminum alloys, selected according to operating strategy and load expectation.
Alloy designation alone does not determine performance. Composition control, forging quality, heat treatment stability, and machining precision define real-world durability.
Each piston incorporates phosphate treatment and a multi-layer dry film skirt coating to promote controlled break-in behavior, skirt stability, and long-term reliability under demanding operating conditions.
Compression ratio and alloy selection must always be considered as part of a complete engine system.
PISTON TYPES

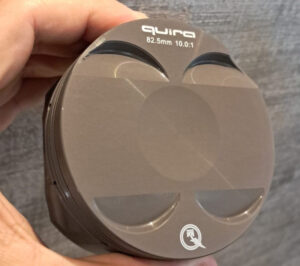

EA888 and EA855 Platforms 23 mm Wrist Pin Configuration
Compression Architecture
The 10.0:1 configuration maintains a conservative static compression baseline while incorporating QUIRA structural reinforcement and material control standards.
This architecture is intended for turbocharged engines where cylinder pressure is primarily managed through boost and ignition strategy rather than elevated static compression.
A 10.0:1 baseline provides:
- Increased detonation margin under elevated boost
- Broad fuel compatibility
- Stable combustion behavior at sustained load
- Greater tuning flexibility
- Predictable operation with large-frame turbo systems
Because this compression ratio closely aligns with OEM architecture, it maintains strong compatibility with most commercially available off-the-shelf calibration files. It does not significantly alter base combustion behavior or factory strategy parameters, making it suitable for engines operating under established tuning solutions.
Available Bore Sizes
82.50 mm
Standard bore replacement for OEM cylinder dimensions.
83.00 mm
Oversize option for refreshed or lightly bored/honed cylinders where wear correction or light taper correction is required.
Both bore sizes retain identical crown structure, ring land reinforcement, and valve relief architecture.
Bore selection must be determined through proper cylinder inspection and machining verification.
Valve Relief Architecture
QUIRA 10.0:1 pistons incorporate extended valve relief geometry engineered for increased lift cam profiles and high RPM valvetrain motion.
Relief capacity:
Intake: +1.0 mm lift, compatible up to 11.75 mm valve lift
Exhaust: +1.5 mm lift, compatible up to 11.75 mm valve lift
Relief depth and pocket geometry are designed to account for dynamic valve motion, cam phasing, and transient instability events while preserving crown integrity and ring land stability.
Final piston to valve clearance must always be physically verified during assembly. Head machining, gasket thickness, cam timing strategy, and valvetrain configuration can materially affect actual clearance.
Wrist Pin Specification

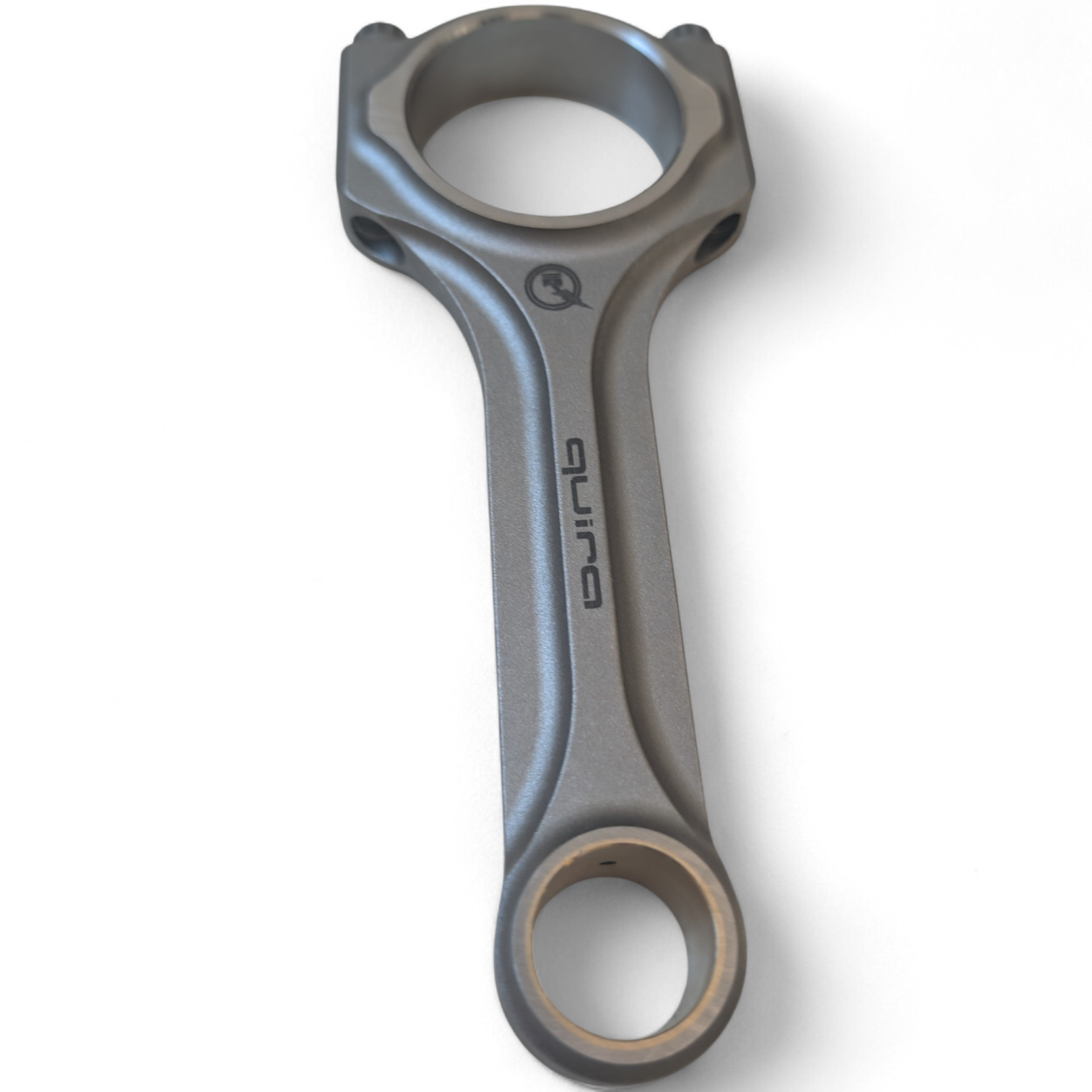

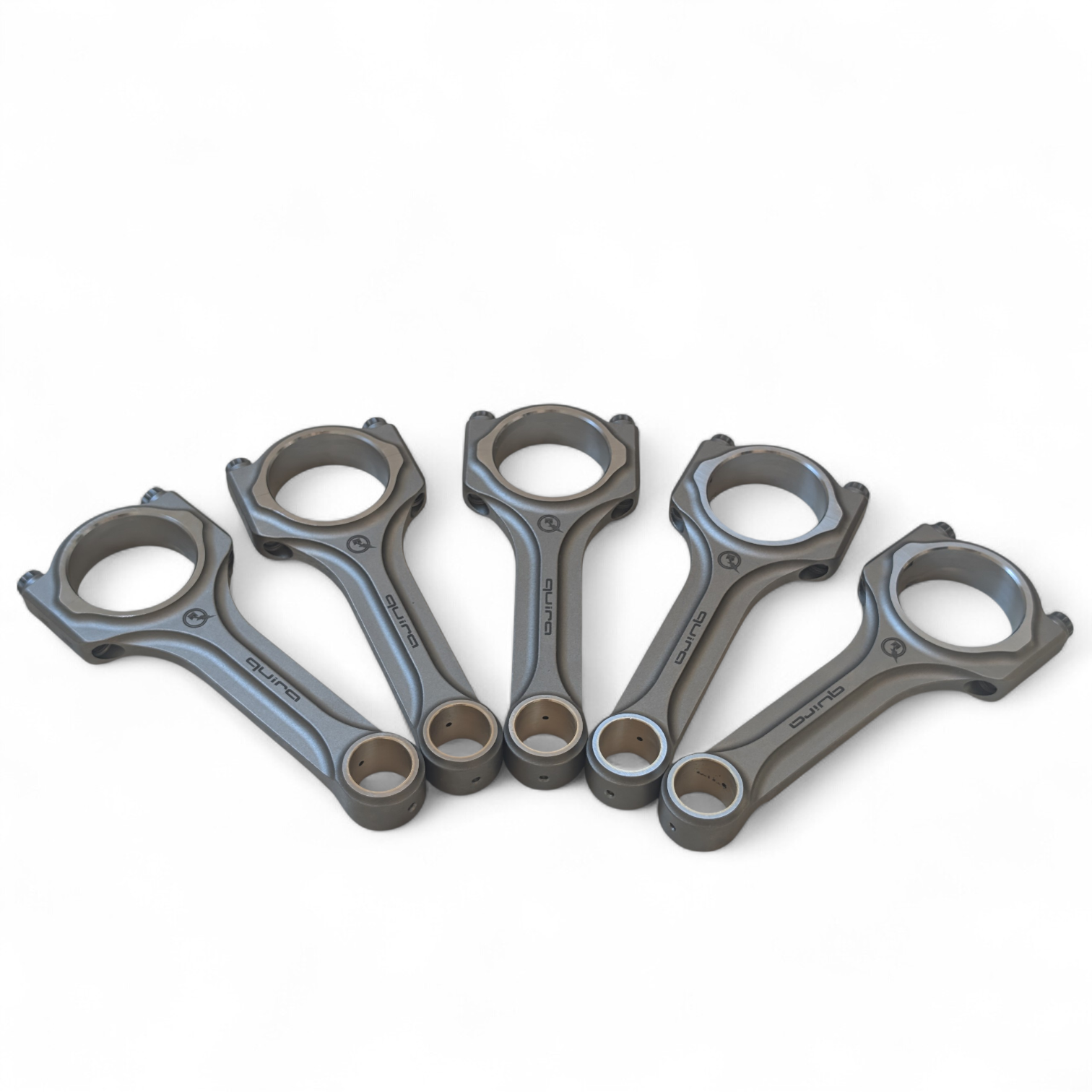

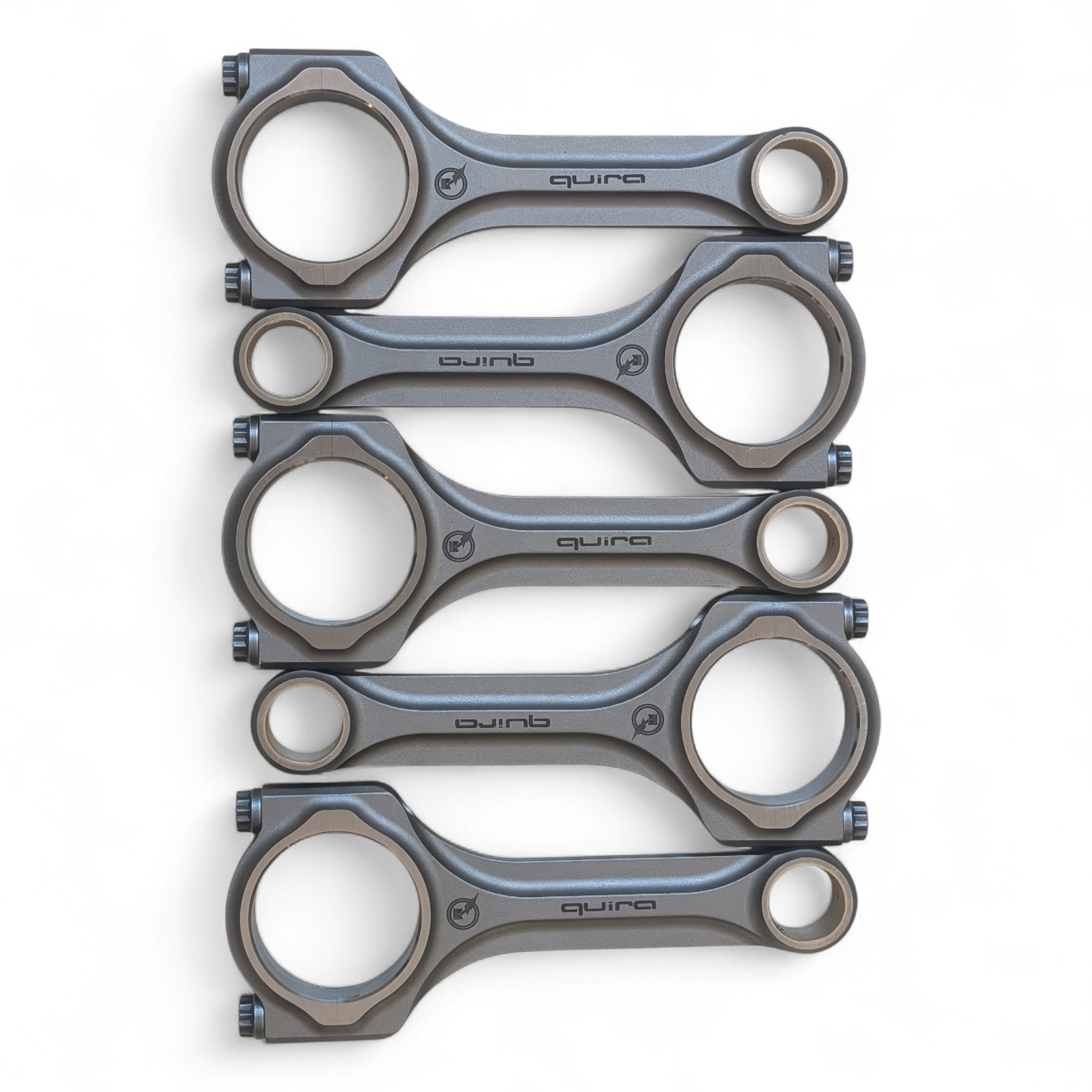

All 10.0:1 pistons are configured for 23 mm wrist pins and are compatible with OEM and performance rod configurations for EA888 and EA855 platforms.
Pin bore support structure is engineered to manage sustained load transfer under high cylinder pressure and repeated thermal cycling.

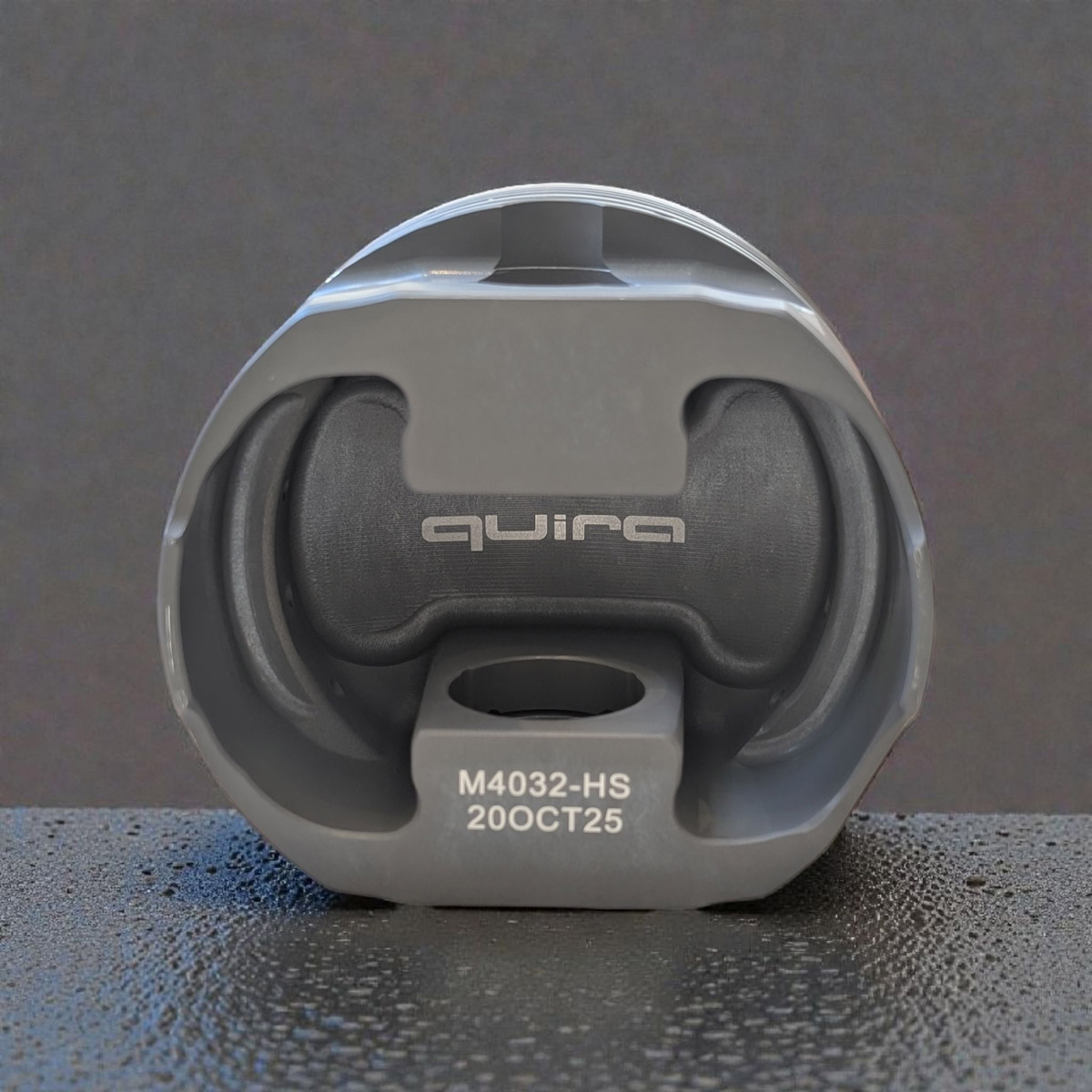

4032-T6 Alloy Variant
The 4032 variant prioritizes dimensional stability and controlled thermal expansion.
Higher silicon content reduces piston growth under operating temperature, allowing tighter piston-to-wall clearance and improved cold operation behavior.
Recommended for:
- High performance street vehicles
- Dual-purpose street and track builds
- Moderate to high boost applications
- Engines operating on off-the-shelf calibration files
- Long-term reliability focused builds
4032 provides stable skirt behavior across repeated thermal cycles and reduced mechanical noise under cold operation.

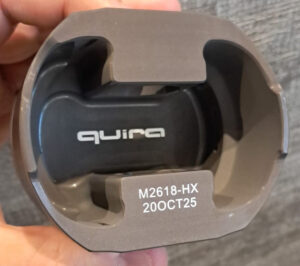

2618-T61 Alloy Variant
The 2618 variant prioritizes ductility and fatigue resistance under extreme cylinder pressure.
Lower silicon content increases material toughness and resistance to crack propagation when operating near mechanical limits.
Recommended for:
- High boost competition builds
- Elevated cylinder pressure environments
- Ethanol-based high-output configurations
- Aggressive ignition and boost strategies
Due to increased thermal expansion, 2618 requires disciplined clearance strategy and assembly verification.
The 2618 10.0:1 configuration is preferred when operating at the upper threshold of boost and power targets.
Material and Compression Selection Guidance
Alloy and compression ratio selection should be determined based on:
- Target boost pressure
- Fuel strategy
- Turbocharger sizing
- Intended duty cycle
- Clearance philosophy
- Calibration strategy
The 10.0:1 architecture provides a stable foundation for both OEM-based and high-output turbocharged systems when assembled and calibrated correctly.

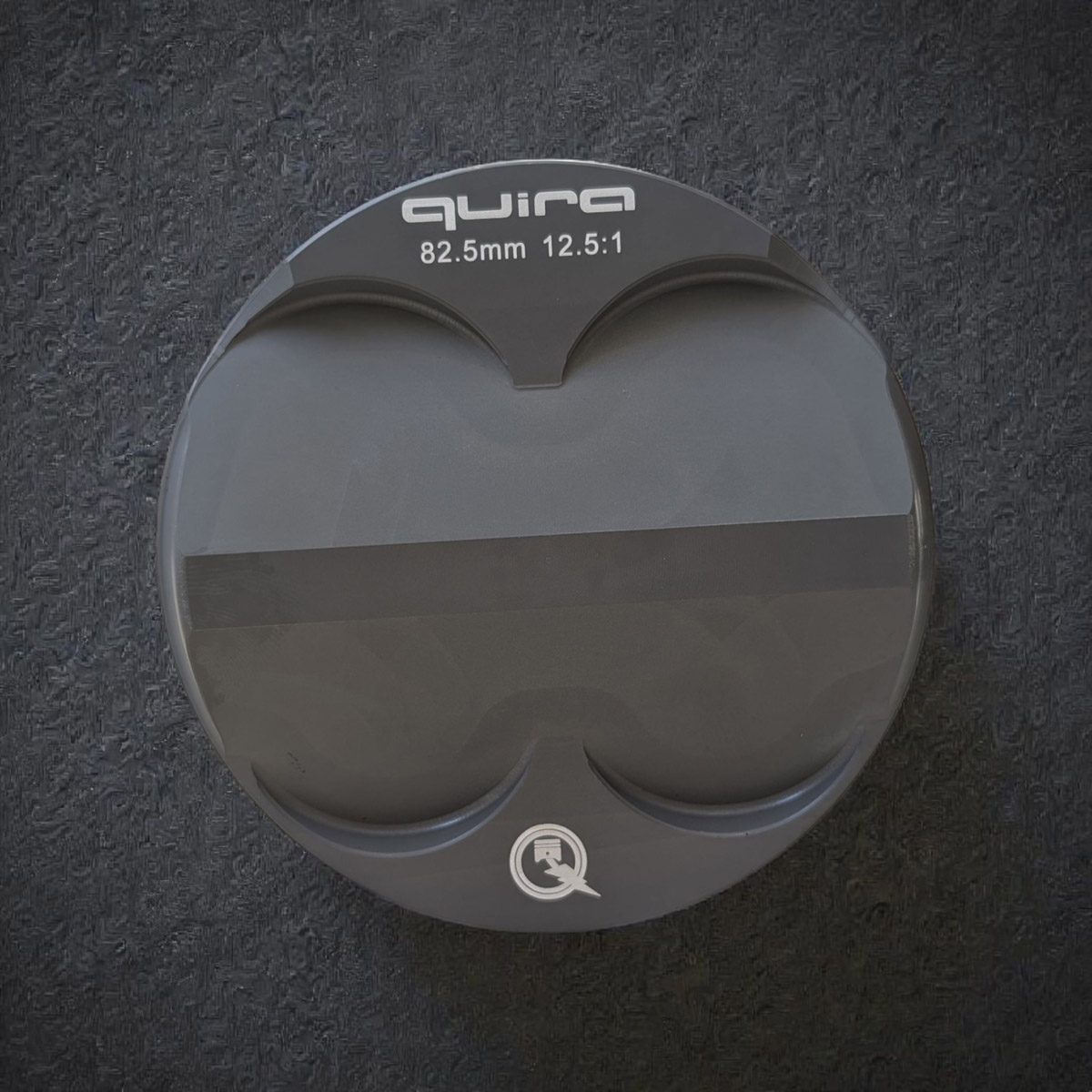

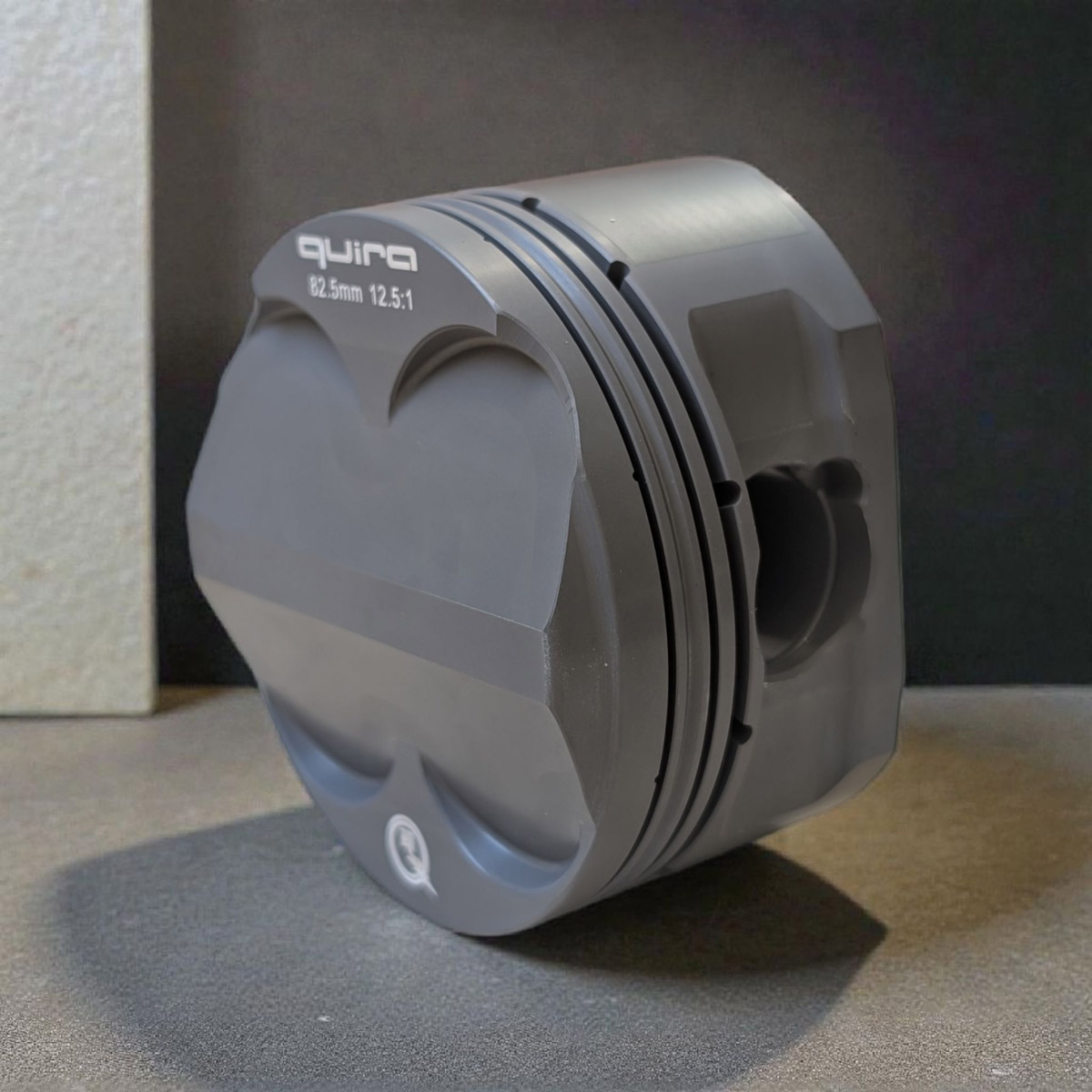

EA888 and EA855 Platforms 23 mm Wrist Pin Configuration
Compression Architecture

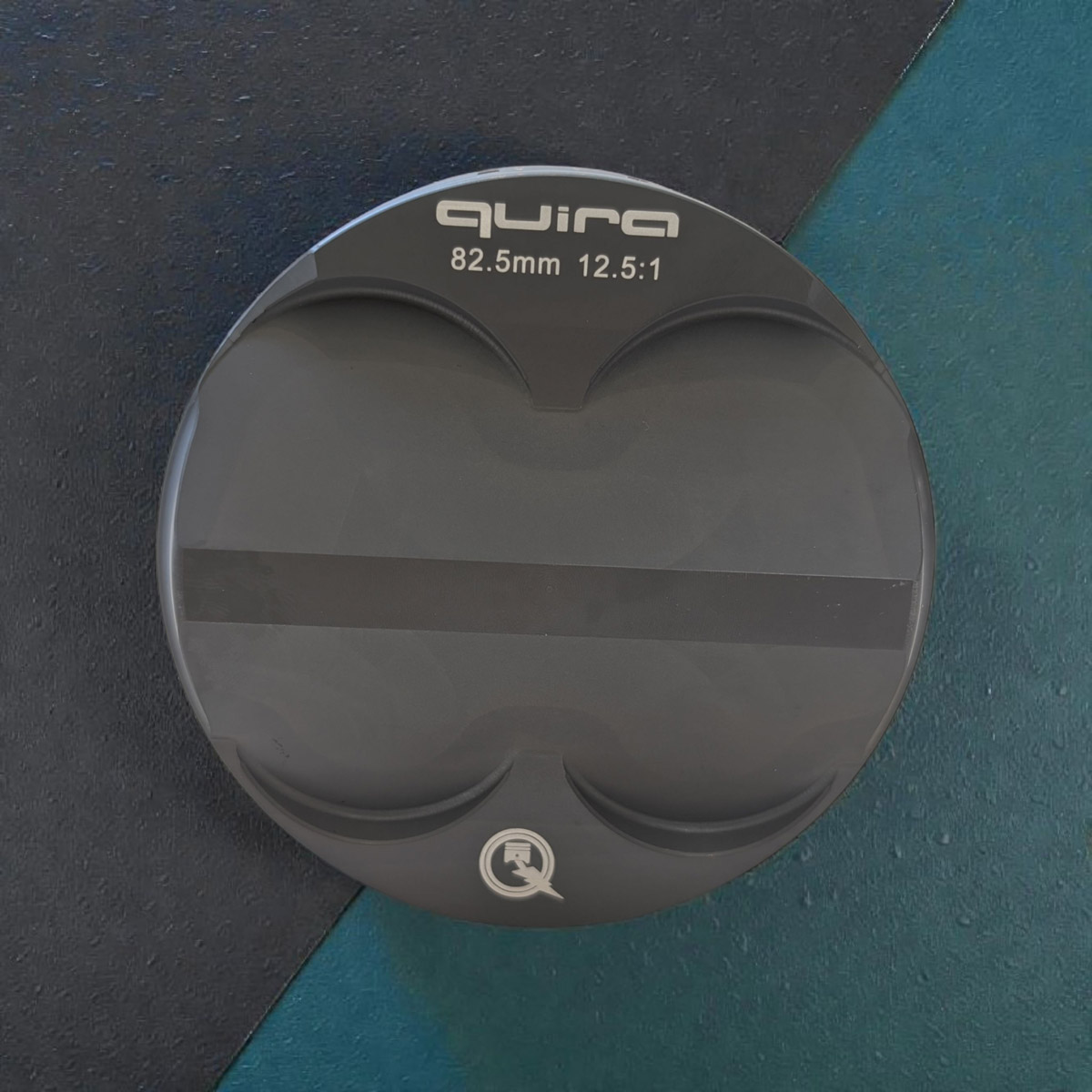

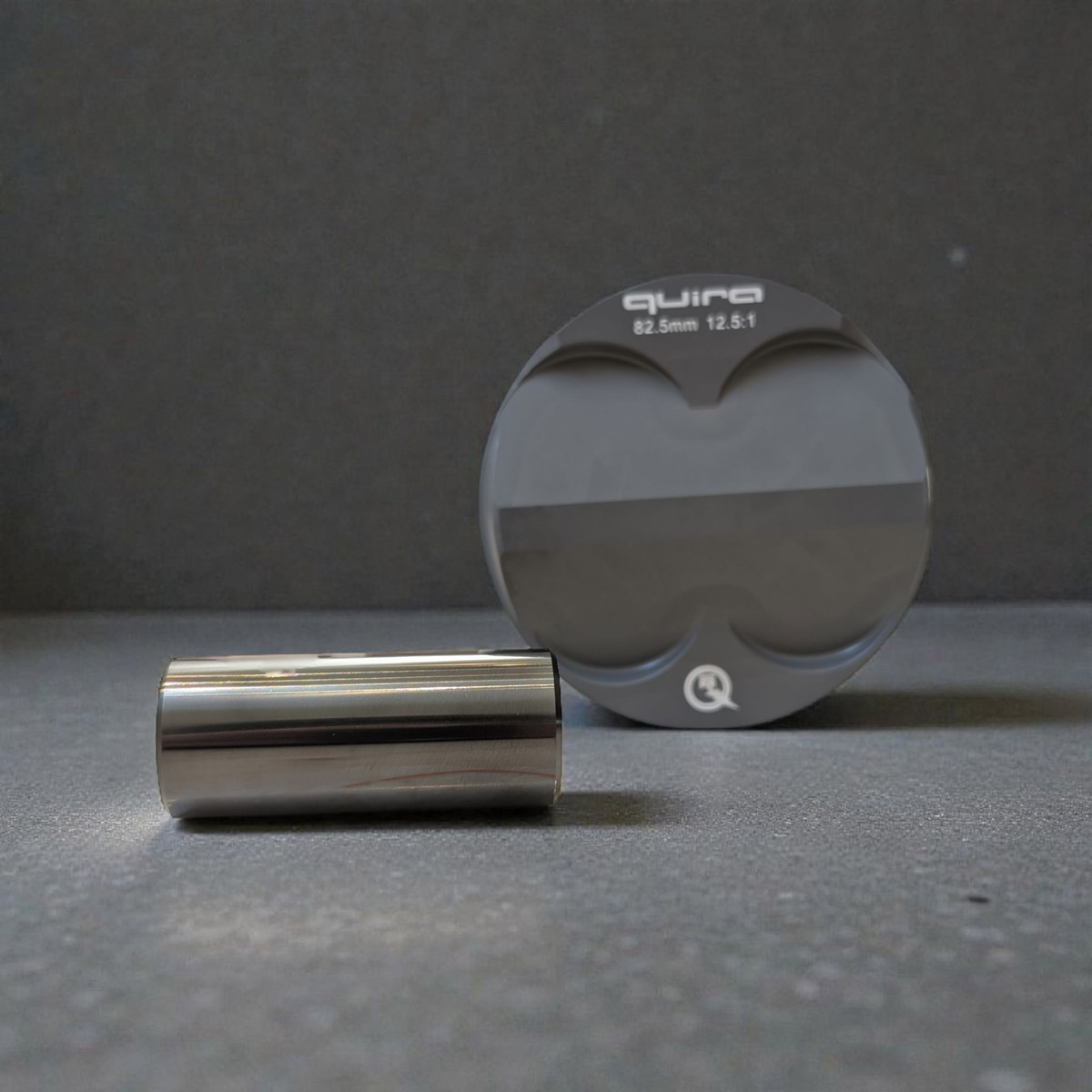

The 12.5:1 configuration increases static compression to improve thermal efficiency, combustion speed, and turbine energy development in turbocharged applications.
This architecture is engineered primarily for ethanol-based fuel strategies and high-response turbo systems where combustion stability can be precisely controlled.
In a properly calibrated engine, elevated static compression provides:
- Improved off-boost torque
- Faster transient response
- Increased turbine drive energy
- Stronger midrange torque development
- Higher thermal efficiency under light and partial load
When paired with ethanol fuels, the increased latent heat of vaporization and detonation resistance allow the engine to operate safely at compression levels that would otherwise be restrictive under lower octane fuels.
The 12.5:1 configuration represents the highest compression ratio currently available for the EA888 and EA855 platforms within a production forged piston offering at the time of this writing.
Available Bore Sizes
82.50 mm
Standard bore replacement for OEM cylinder dimensions.
83.00 mm
Oversize option for refreshed or lightly machined cylinders.
Both bore sizes retain reinforced ring lands, optimized crown thickness, and identical valve relief architecture.
Final bore selection must be determined through cylinder inspection and machining verification.
Valve Relief Architecture
QUIRA 12.5:1 pistons retain extended valve relief capacity engineered for increased lift cam profiles and high RPM valvetrain motion.
Relief capacity:
- Intake: +1.0 mm lift, compatible up to 11.75 mm valve lift
- Exhaust: +1.5 mm lift, compatible up to 11.75 mm valve lift
Relief geometry preserves crown integrity and load distribution while accommodating performance camshaft profiles.
Piston to valve clearance must always be physically verified during assembly, particularly in high compression configurations.

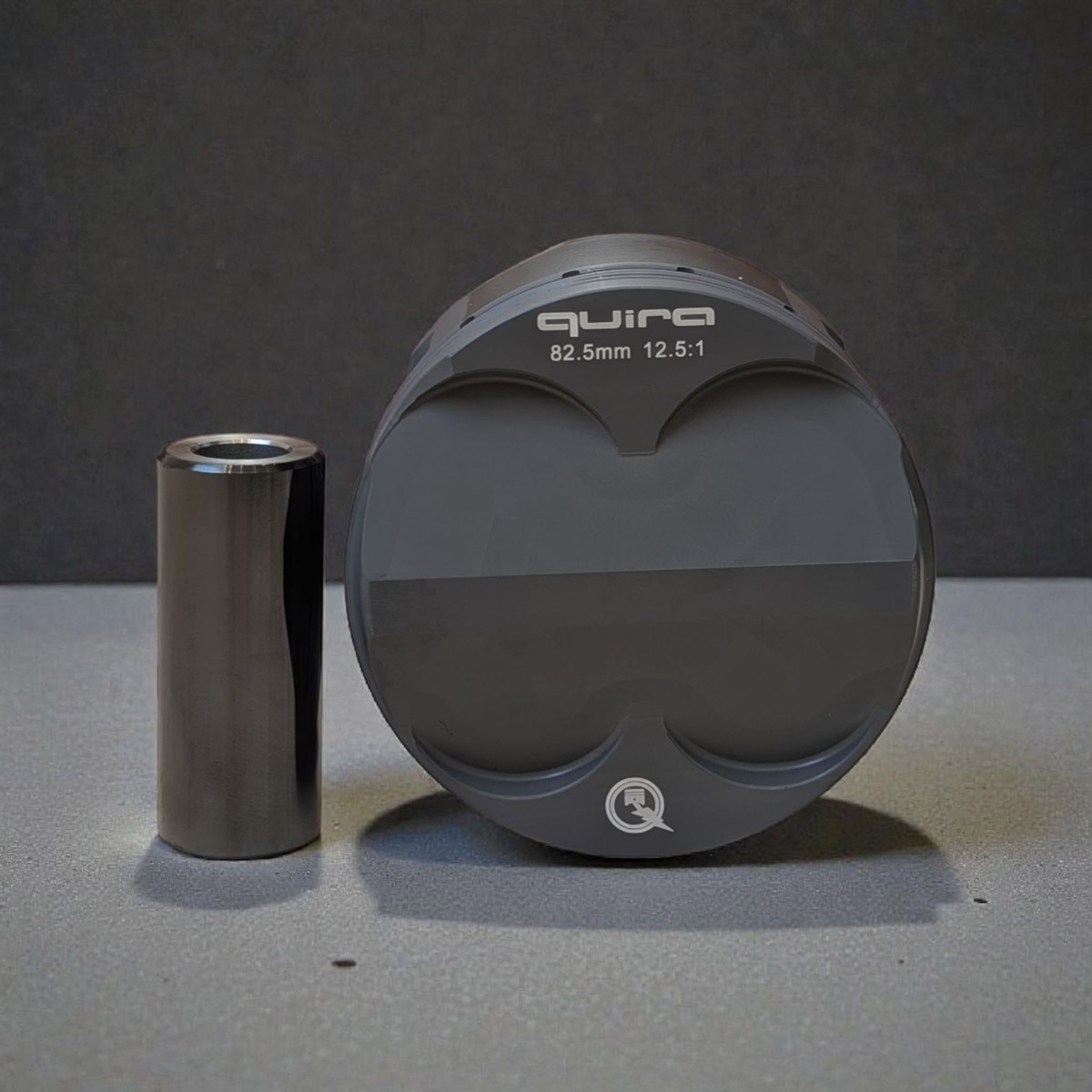

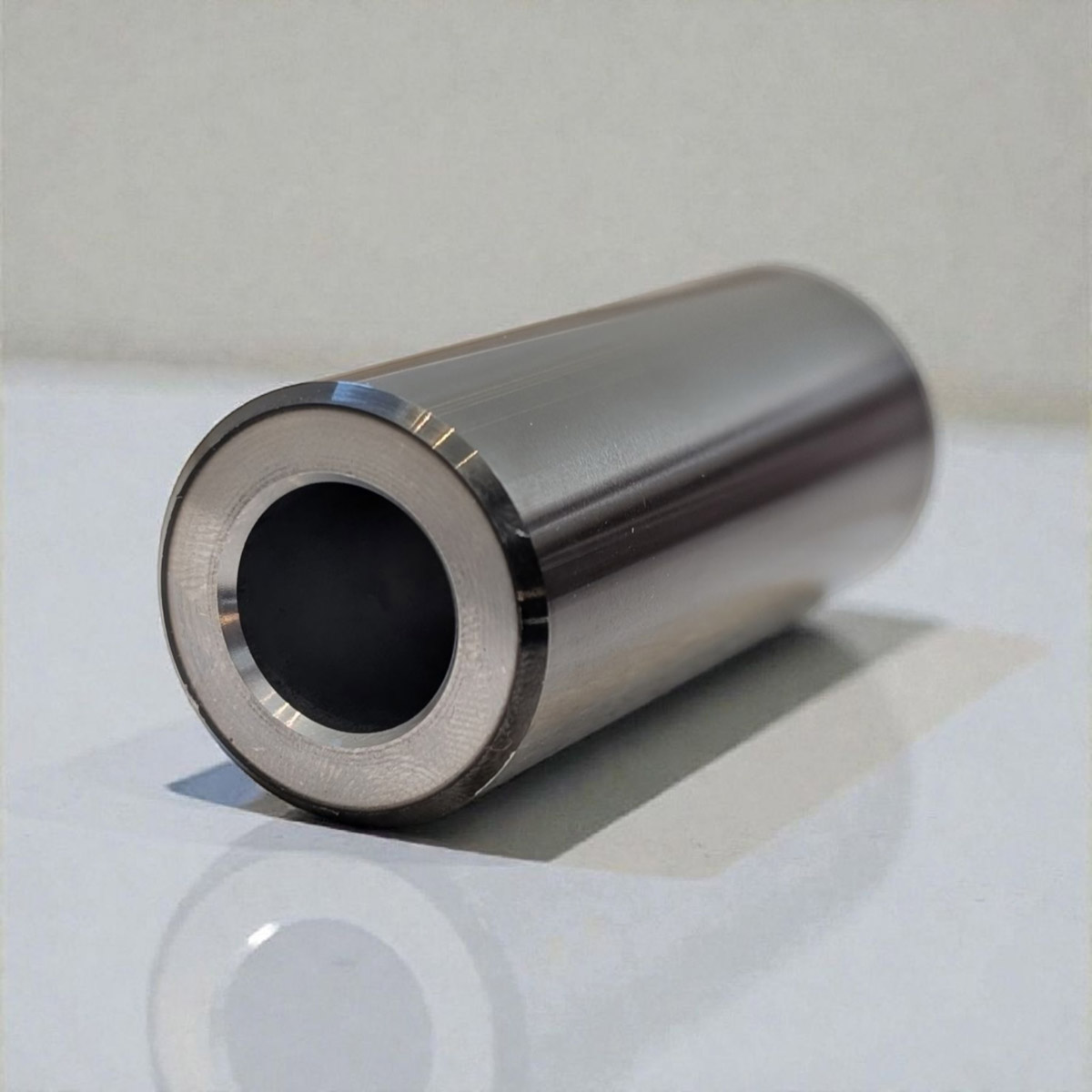

Wrist Pin Specification
All 12.5:1 pistons are configured for 23 mm wrist pins and are compatible with OEM and performance rod configurations for EA888 and EA855 platforms.
Pin support structure and crown load distribution are engineered to manage elevated peak cylinder pressure associated with increased static compression.
4032-T6 Alloy Variant
The 4032 12.5:1 configuration prioritizes dimensional stability in high compression environments.
Recommended for:
- Ethanol-based street builds
- High response turbo systems
- Balanced street and track vehicles
- Drivers prioritizing efficiency and responsiveness
4032 offers controlled thermal expansion and stable piston-to-wall behavior under repeated thermal cycling.
2618-T61 Alloy Variant
The 2618 12.5:1 configuration is intended for elevated output ethanol builds operating at sustained cylinder pressure.
Recommended for:
- High boost ethanol applications
- Competition environments
- Engines operating near mechanical thresholds
Due to increased expansion characteristics, disciplined clearance strategy and assembly verification are critical.
Application Guidance
The 12.5:1 architecture is designed for builders who treat fuel quality, calibration, and mechanical verification as controlled variables.
When properly assembled and calibrated, elevated static compression improves efficiency and response without compromising durability.
Compression ratio must always be selected as part of a complete engine system strategy.
